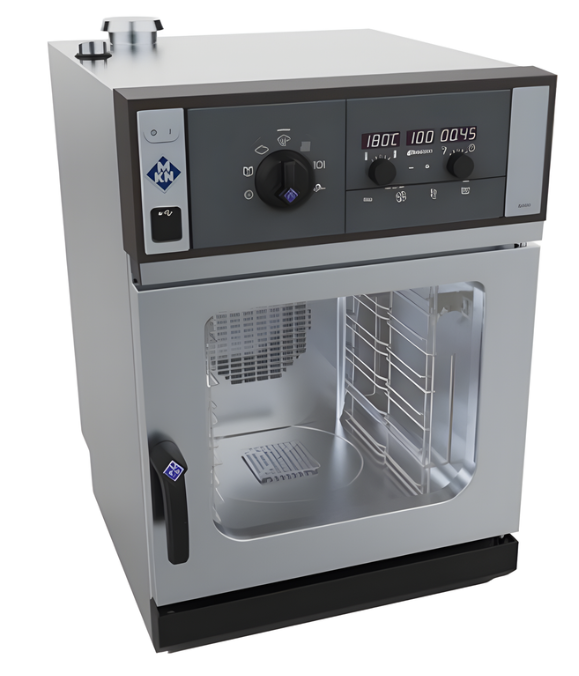

MKN Junior MagicPilot SKE623R_MP_G2 6 Tray Combi Oven

The MKN Junior MagicPilot SKE623R_MP_G2 6 Tray Combi Oven is a high-performance commercial combi oven engineered for precision convection, steam and combination cooking in busy kitchens.

Key Features:

• MagicPilot – Robust, wear-free, capacitive true colour touch screen.
• Video assist – Interactive user assistance with clips featuring professional chefs.
• CombiDoctor – Self-diagnosis programme.
• Hygienic rounded corners and cookingchamber door with insulated triple glazing.
• RackControl – Multi-timer.
• GreenInside – Indicates the energy and water consumption for each cookingprogramme.
• AutoChef – Up to 350 individual cooking programmes andmanual operating system.
• USB interface.
• High speed centrifugal steam generation technology with heat recovery.
• ClimaSelect – Humidity and temperature control measurement.
• WaveClean – Automatic cleaning system (safe, easy, economical).

Specifications:

• Brand: MKN
• Vendor: Phoeniks
• Model/SKU: SKE623R_MP_G2
• Width x Height x Depth (mm) : 550 x 819 x 611Connected load (electrical) (kW): 5.2 or 3.5Voltage (V) / EC: 415 3 phase AC or 240 1 phase ACRecommended fuses (A): 3 x 20 or 1 x 15Frequency range (Hz): 50Soft Water connection: DN 20 (R ¾“ inside)Water connection: DN 20 (R ¾“ inside)Waterpressure (kPa): 200 - 600 (2 - 6 bar)Drain connection: DN 40Gastronorm 2/3 (354 x 325 mm): 6 (max. 60 mm deep)Plates Ø 28 cm: 6Material housing: 1.4301Material cooking chamber: 1.4301Net weight (kg): 68Heat emission latent (W): 936 (or 281 with HoodIn)Heat emission sensitive (W): 624Type of protection: IPX 53 years warranty parts and labour.
